Roll Packers
A roll packer serves to compact and reduce the volume of material in an open high-volume container. Crushing and compaction is carried out in layers through the movement of a specially-constructed heavy and durable packing roller. Designed for high-volume containers up to 6.6 m long and 2.5 m wide. The container can be continually filled with additional waste.
Uses
- large-volume waste,
- large-volume cartonboard,
- wood cuttings,
- EURO-pallets,
- old furniture,
- cans and metal packagings,
- paper.
Technical Parameters
| Parameter | Value |
|---|---|
| Roller weight | 1550 kg |
| Roller width | 1700 mm |
| Roller diameter | 1150 mm |
| Track length | 6500 mm, adjustable for shorter containers |
| Working clearance height | 6600 mm |
| Required space | 1850 mm + container length |
| Exterior height of container | max. 3100 mm |
| Space between rails | 2560 mm |
| Rail length | 4100 mm |
| Pocket distance | 900 mm |
| Total weight | 3200 kg |
| Power supply | 400 V / 50 Hz 5,5 kW |
| Safety | 32 A, CEE outlet |

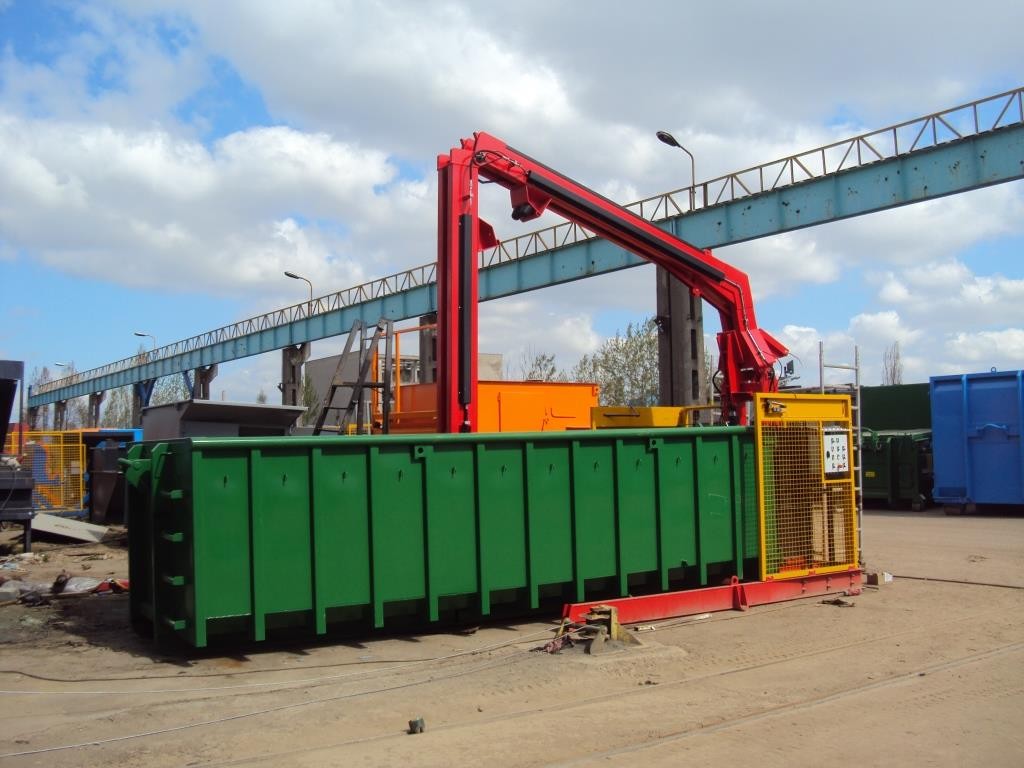

Photogallery
